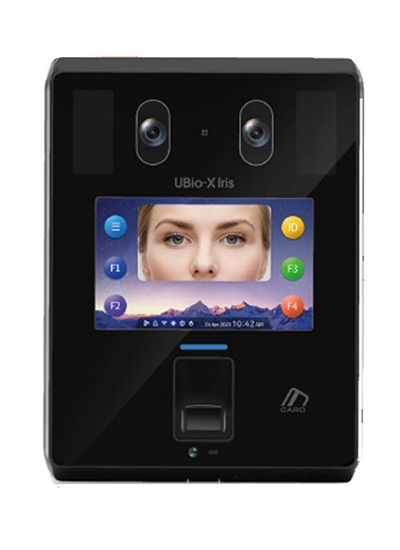

UBio-X Iris

Authentication Method				Biometric
Dust/ Water Resistance				X
Memory	Max Users	card	(1:1)/(1:N)	200,000
		Fingerprint (Base on one finger enrollment per user)	1:1	200,000
			1:N	50,000
		Face (Base on five Face enrollment per user)	1:1	X
			1:N	X
		Iris (Base on 2 eyes (L/R) enrollment per user)	1:1	200,000
			1:N	20,000
	Templates	Fingerprint	1:1	400,000
			1:N	100,000
			MAX Templates per Finger	2
			MAX Finger per User	10
		Face	1:1	X
			1:N	X
			MAX Templates per Finger	X
		Iris	1:1	400,000
			1:N	40,000
			MAX Templates per Eyes	2
			MAX Templates per User	4
	Logs			10,000,000
	Images			20,000
Communication	with server			TCP/IP
	other			USB
	Wireless LAN(Wi-Fi)			Optional
	Wiegand OUT			O
	RS232			O
	RS485			O
	Wiegand IN			O
Display	LCD			5”Color Touch
	Backlight			0
Embedded Camera				Dual
Card	125khz-EM			O
	HID Prox			O
	HID iclass			O
	13.56MHz Smart Card			O
Keypad				Touch Screen
Function keys				SOFT
Door Phone				VoIP
FP Sensor (Platen Area)				Nscan-FM : 16.6 x 21.6mm
Resolution				500dpi
Dimension	(W) X (H) X (D) mm			160.6 x 214 x 45.4mm
FRR /FAR				0.1% / 0.0001%
Operating Temperature				-20 ~ 60℃
Opertating Software (Server solution)
