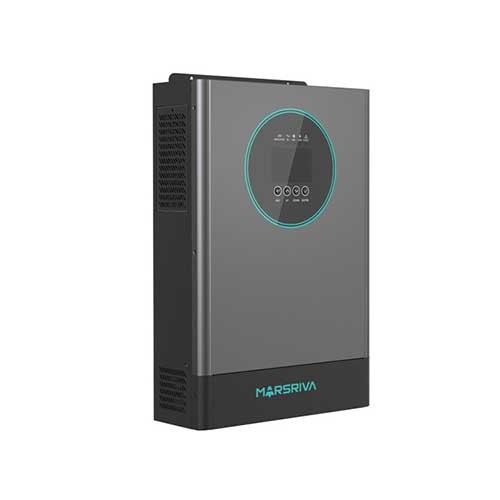

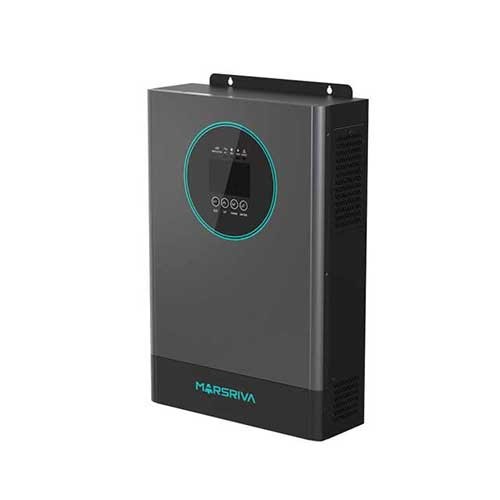

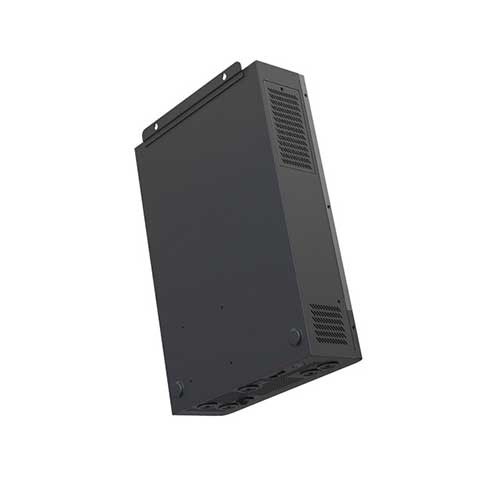

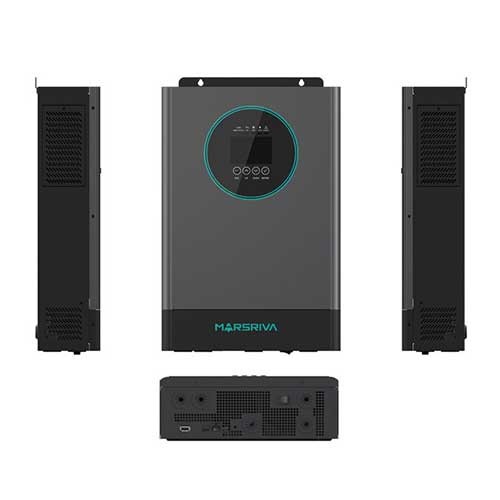

MARSRIVA MR-SPF3.6K-LP1-TL20E Hybrid Solar Inverter

Features

• Rated Power: 3.6kW / 3.6kVA
• Pure Sine Wave Output: Provides a pure sine wave AC output.
• High-Frequency Design: Compact and lightweight inverter design.
• MPPT Solar Charge Controller: Supports 40–450V DC MPPT voltage range.
• Maximum Solar PV Input: Up to 5000W.
• Maximum Solar Charging Current: 100A.
• Battery Compatibility: Supports lead-acid, lithium and user-defined battery types.
• Battery Voltage: 24V DC nominal.
• Multiple AC Output Voltages: 208V / 220V / 230V / 240V AC.
• Wi-Fi Monitoring: Supports monitoring through a Wi-Fi module.
• BMS Communication: CAN and RS485 communication interfaces.
• Hybrid Power Operation: Solar and utility grid can power loads simultaneously.
• Grid Feed-in Function: Supports feeding power into the grid.
• Compact Dimensions: 284 × 420 × 104 mm.
• Net Weight: Approximately 6.4 kg.
